Vertical High Lift Pressure Water Supply Multistage Booster Jockey pump

FOB Reference Price:Get Latest Price
US $120-1,100 / Set | 1 Set/Sets Multistage Booster Jockey pump (Min. Order)
Supply Ability:
600 Set/Sets per Month Water Supply Multistage Booster Jockey pump
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ZJ BETTER
Model Number:
CDLF
Theory:
Centrifugal Pump
Structure:
single stage or multistage
Usage:
Water
Power:
Electric, 0.37-45 kw
Standard or Nonstandard:
both
Fuel:
Electric
Pressure:
High or Low Pressure
Application:
Fire
Name:
Multistage Booster Jockey pump
Flow:
1-42 m3/h
Working Pressure:
less than 2.5 MPa
Medium weather:
-15-120 ℃
Weight:
20-420 kg
Color:
any color you want
Material:
casting iron or Stainless Steel
Area:
20000 square meters
Sealing:
mechanical seal
Packaging & Delivery
Packaging Details
Special wooden case or customized
Delivery Time
1-7 days



High Lift Pressure Water Supply Multistage Booster Jockey Pump



1.Usage

1. Boiler, Condensing system

2. Supercharging for pipes at high building

3. Penetration and filtration systems

4. Fire fight boost regulator system



2.Advantages

1. Durable:                        the stainless material make it preservative and anti-aging

2. Eco-firendly:                this jocky pump is clean and low noise

3. Easy moving:               this jockey pump is light weight with small size



3.Components



1.Motor                2.Pump casing            3.Impeller           4.Difusser

5.Inlet                   6.outlet                          7.Shaft               8.mechanical seal



4.Perameter

Model

Caliber

(mm)

Flow

(m3/h)

Head

(m)

Power

(kw)

Speed

(r/min)

Working pressureMedium tempratureMaterial
CDL25-652-32 15-2000.37-302900 2.5 mpa-15-120  304
GDL25-1502-200 30-2001.1-1322900  2.5 mpa-15-120 HT200
LG-B25-1253-100 30-2000.75-552900  2.5 mpa-15-120 HT200
DL40-2003-360 10-2601.5-2201450 5.0 mpa-15-120 HT200 304
ISG15-5001-1800 2-1500.18-160960-2900 1.6 mpa 99 HT200



5. Pumps



6.Certification

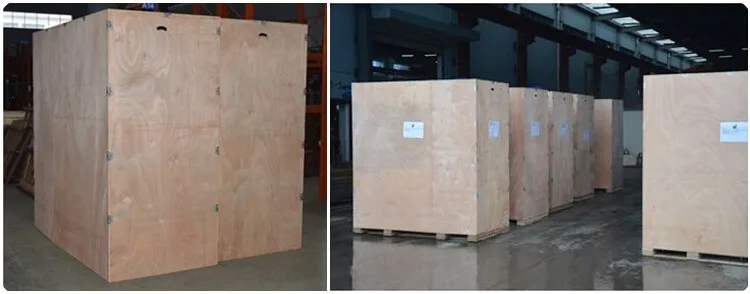

Packaging & Shipping
     1.  wood case with fastened iron hoop.        2. delivery in 1-7 days after payment





Our Services



                                                                 We are happy to serve you always !





Company Information

 Zhejiang Better Pump company is established in 2004, with 200 workers and 20,000 sqm factory.



Main products are water supply system/ fire fighting system/ waste water lifting system.



They have got CCCF,SGS,ISO9001,SASO cetificate.
